杆式冷水机主要技术参数
内别Model | 单压缩机系列Single Compressor Series | 双压缩机系列 Double Compressor Series | ||||||||||
型号 | XC-50WCS | XC-60WCS | XC-70WCS | XC-80WCS | XC-120WCS | XC-100WCS | XC-120WCS | XC-140WCS | XC-160WCS | |||
额定制冷量 Rated Cooling Capacity | 50HZ | BUT/H | 558100 | 678620 | 798030 | 835600 | 1347800 | 1089860 | 1352880 | 1568100 | 1685200 | |
KCAL/H | 134150 | 165080 | 198230 | 210320 | 342100 | 266630 | 332350 | 387650 | 398706 | |||
KW | 162 | 190 | 226 | 239 | 378 | 312 | 380 | 449 | 486 | |||
USRT | 44 | 55 | 65 | 72 | 112 | 88 | 112 | 128 | 145 | |||
输入电源Power Supply | KW | ~380V/3PHASE/HZ | ||||||||||
输入功率Power | 38 | 45 | 52 | 61 | 86 | 74 | 86 | 105 | 122 | |||
制冷回路Refrigeration Circuit | 1 | 2 | ||||||||||
冷媒流量控制Refrieration Floe Control | 热力膨胀阀Thermal Expansion Valve | |||||||||||
冷媒Refrieration | R22 | |||||||||||
压缩机 Compressor | 款式Type | 半封闭螺杆式Semi-hermetic Screw | ||||||||||
数量Quantity | 1 | 2 | ||||||||||
启动方式Start Method | Y-△启动Start | |||||||||||
容量控制Capacity Control | % | 100-75-50-25 | ||||||||||
冷凝 Condensation | 款式Type | 高效能外螺纹铜管壳管式High-eficiency External Copper Tube Shell and Tube | ||||||||||
数量Quantity | 1 | 2 | ||||||||||
冷却水压力损失Coonling Water Pressure Lost | Kpa | 39 | 40 | 43 | 45 | 45 | 43 | 40 | 40 | 40 | ||
冷却水流量Flow Rate of Cooling Water | m3/h | 31 | 34 | 45 | 55 | 61 | 65 | 61 | 74 | 86 | ||
蒸发器 Ecaporator | 款式Type | 高效能内螺纹铜管壳管式High-eficiency in Copper Tube Shell and Tube | ||||||||||
数量Quantity | 1 | 2 | ||||||||||
冷冻水压力损失Chilled Water Pressure Lost | Kpa | 61 | 65 | 67 | 82 | 67 | 65 | 55 | 72 | 55 | ||
冷冻水流量Flow Rate of Chilled Water | m3/h | 28 | 31 | 45 | 45 | 55 | 52 | 55 | 74 | 88 | ||
温控仪Temperature Control | 邦普电脑模块PUNP Computer Module | |||||||||||
安全保护装置Safety Protection Device | 压缩机过热自带保护,电流超限保护,系统高、低压保护,水流量保护,相序缺相保护,防冷过热保护,漏电保护。 Protection of compressor overheat,Protection of electric current overload,Protection of high,lower pressure, Protection of waterflow,Protection of phase lose,Protection of cooling proof/overheat,Protection of creepage. | |||||||||||
管道连接尺寸 Pipe Size | 冷冻水进/出 Chilled Water into/out | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | ||
冷却水进/出 Cooling Water into/out | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | |||
机器重量Machine Weight | KG | 870 | 1060 | 1130 | 1570 | 2100 | 1650 | 1800 | 2160 | 2720 | ||
运行重量Operation Weight | KG | 1010 | 1200 | 1550 | 1720 | 2390 | 1950 | 2090 | 2700 | 3150 | ||
外形尺寸External Size | cm | 192*82*165 | 192*82*165 | 198*85*170 | 223*85*175 | 235*95*175 | 235*95*175 | 287*95*175 | 287*95*175 | 320*95*180 |

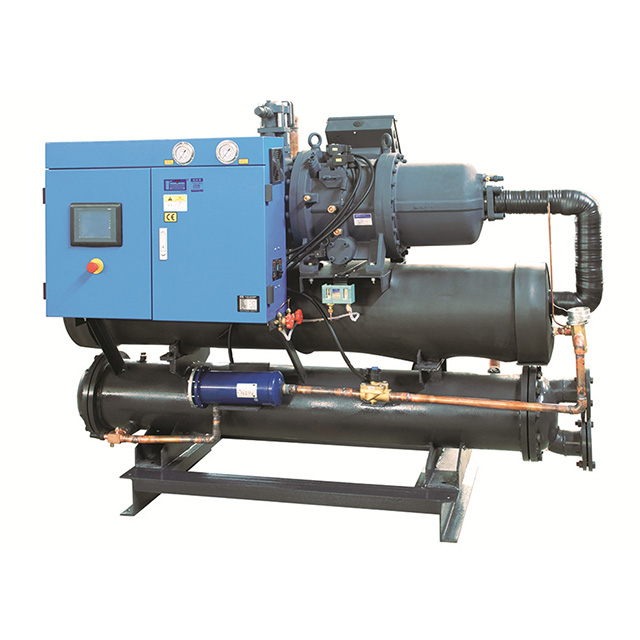

XC-螺杆式冷水机
XC-XXS系列螺杆式冷水机主机采用德国BITZER半密闭式双螺杆压缩机,具有卓越的技术特性,分为单压缩机和双压缩机两种机型。且适用于R22、R407、R134a等多种冷媒。高效率卧式壳管式冷凝器与蒸发器均有“BR1”级国家压力容器制造许可,换热稳定,维修保养方便。先进的微电脑控制,功能强大,采用高速嵌入式微处理器,性能远高于同类产品中使用的单芯片机。
适用于R22、R407. R134a等多种冷媒。高效率卧式壳管式冷凝器与
蒸发器均有“BR1" 级国家压力容器制造许可,换热稳定,维修保养方
便。先进的微电脑控制,功能强大,采用高速嵌入式微处理器,性能远
高于同类产品中使用的单芯片机。
德国制造半密闭式双螺杆压缩机,轴承寿命长,可确保长时间运转;
压缩机双重的能量调节方式,可依客户需求做调整以达节能的效果;
冷凝器与蒸发器均符合国家需求,高效热交换性能,且维修保养方便;
控制器扩通性能良好,可方便硬件及程序的扩展与升级;
技术使微电脑控制器的硬件组件具自我诊断能力,能自动排除故障;
配备稳定性高的记忆体,512K的程序存储容量及12BK的断电数据保存容量,可大量存储资料且不会流失;
故障查询能与故障统计功能可以按故障序号、故障次数和发生时间来分析故障发生原因,以便加以改善;
可随时查看各点实际温度并作维修改设定,此外上可显示- -小时及-天的温度曲线;
具远程控制开关机功能,可实现一次定时开关机及每周定时开关机的应用。每天做多可设定开关机达3次:
支持多语言在线切换
