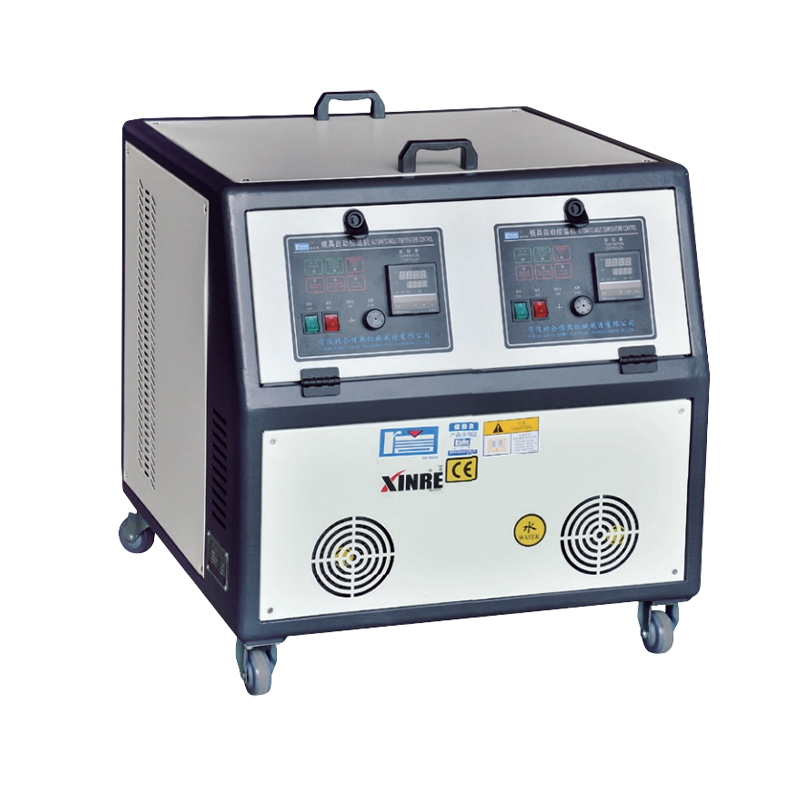

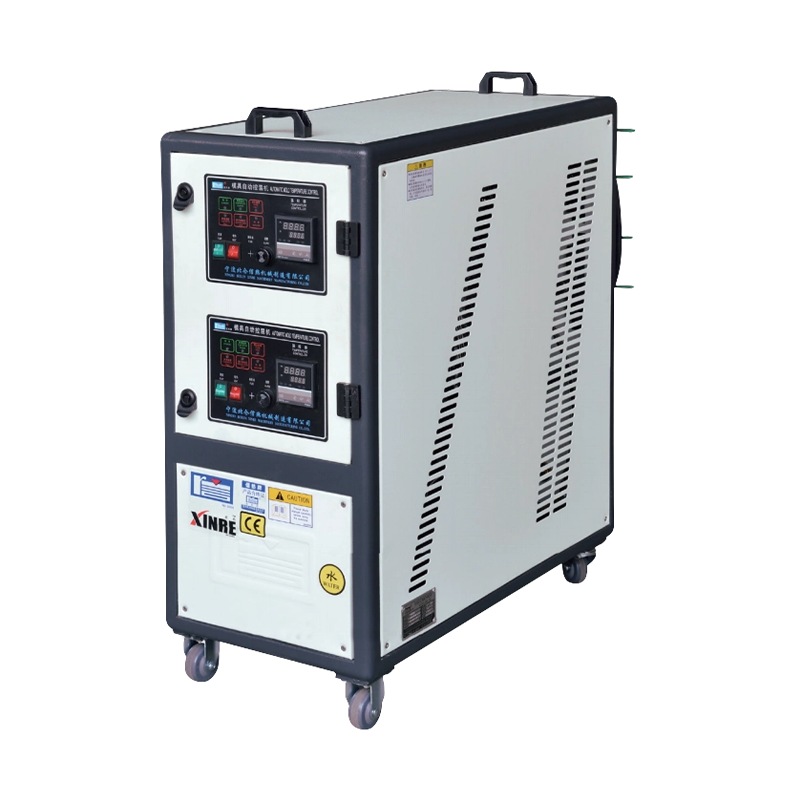

Two Stage Automatic Mold Temperature Controller

XCM mold temperature controls make use of water and high-property heat-transferring oil as a medium to keep a proper stable temperature in the process of mold forming, so as to guarantee high-quality products and raise the productive efficiency.

Request a Quote Download

PREV：High Temperature Mold Auto-Matic Temperature Controller NEXT：Water Cooled Cased Industrial Chiller

Product Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Model	Temp (℃)	Heat capacity (kw)	Pump power (kw)	Max.pump volume (L/min)	Max.pump pressure (bar)	Liquid Storage Quantity (L)	Cooling method	Mold connecting	External size LxWxH (mm)	Weight (kg)
XCM-6-W(2D)	95	6+6	0.37x2	40	1.5	10x2	Indirect cooling	3/8"x4	1000x450x850	120
XCM-6-0(2D)	170	6+6	0.37x2	40	1.5	10x2		3/8"x4	1000x450x850	120
XCM-9-W(2D)	95	9+9	0.75x2	100	2	10x2		3/8"x8	950x700x750	140
XCM-9-0(2D)	170	9+9	0.75x2	100	2	10x2		3/8"x8	950x700x750	140
XCM-12-W(2D)	95	12+12	0.75x2	110	2.2	10x2		3/8"x8	950x700x750	140
XCM-12-0(2D)	170	12+12	0.75x2	110	2.2	10x2		3/8"x8	950x700x750	140
