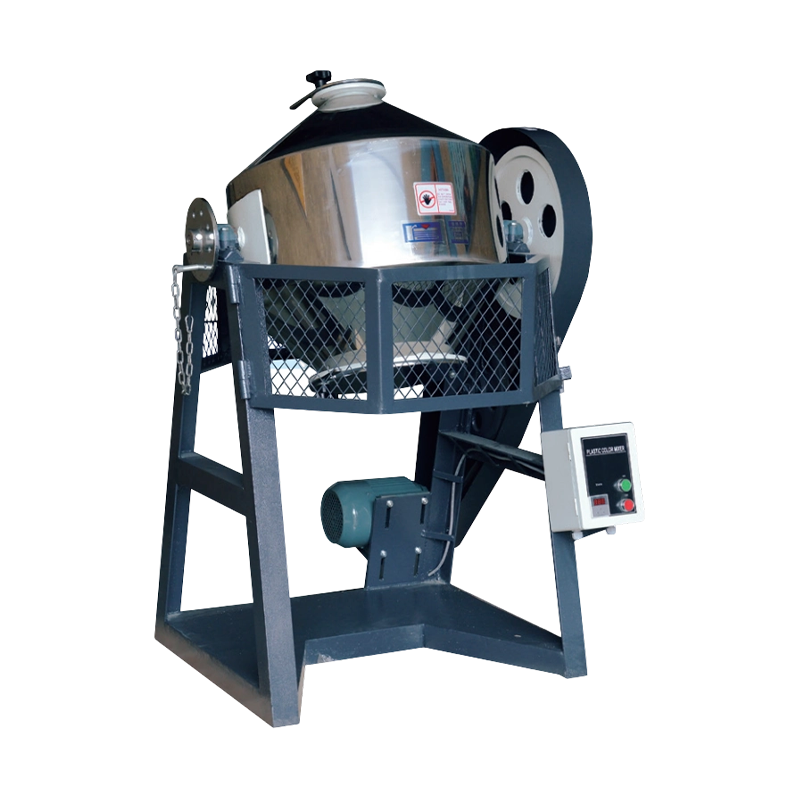

Rolling Barrel Type

Both mixing pail and vane are made of stainless steel, easy to clean and absolutely no pollution, Time setting can be controlled easily and precisely in the range of 0-15 minutes.
·The chain safety device can protect the safety of operator and machine.
·The material is thick, strong and durable.

Features
·Well-distributed mixing can be done in a shot time, low energy consumption and high efficiency.
·Material outlet amounted manual discharging board, convenient for discharging.
·Machine feet welt with machine body, a firm structure.
·The standing color mixer can be equipped universal feet wheels and brake, convenient for moving.

Request a Quote Download

PREV：Horizontal Type NEXT：Vertical Type

Product Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Type	Model	Power (V)	Motor power (KW)	Mixing capacity (kg/min)	External size (mm)	Weight (kg)
Horizontal type	XHS-100kg(H)	380V50HZ 3Ø 220V60HZ 3Ø	3	100/3	1150x800x1300	280
	XHS-150kg(H)		4	150/3	1400x800x1300	398
	XHS-200kg(H)		4	200/3	1376x750x1465	468
Rolling barrel type	XHS-50kg(R)		0.75	50/3	820x950x1300	120
Rolling barrel type	XHS-100kg(R)		1.5	100/3	1100x1100x1450	155
Vertical type	XHS-50kg(V)		1.5	50/3	860x740x1110	150
	XHS-100kg(V)		3	100/3	960x1000x1200	230
	XHS-150kg(V)		4	150/3	1080x1080x1300	250
	XHS-200kg(V)		5.5	200/3	1400x1200x1550	280
Screw type	XHS-500kg(S)		4	500/10	1700x1300x2600	400
	XHS-1000kg(S)		5.5	1000/10	1800x1600x2800	800
	XHS-2000kg(S)		5.5	2000/10	2250x2200x3200	1000
	XHS-3000kg(S)		7.5	3000/10	2100x2100x3700	1200
	XHS-5000kg(S)		11	5000/10	2200x2200x5000	1600
