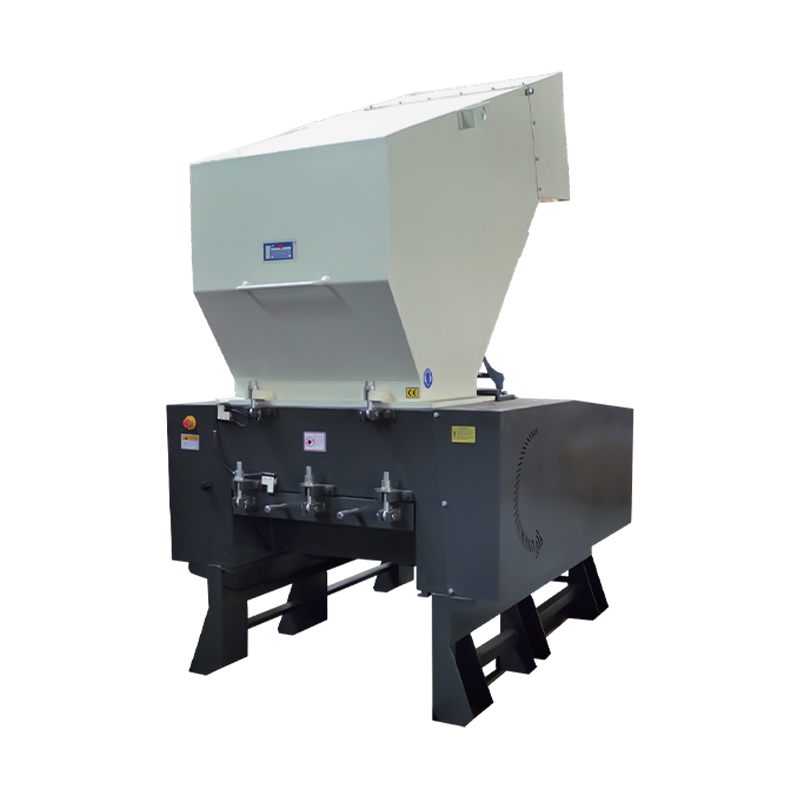

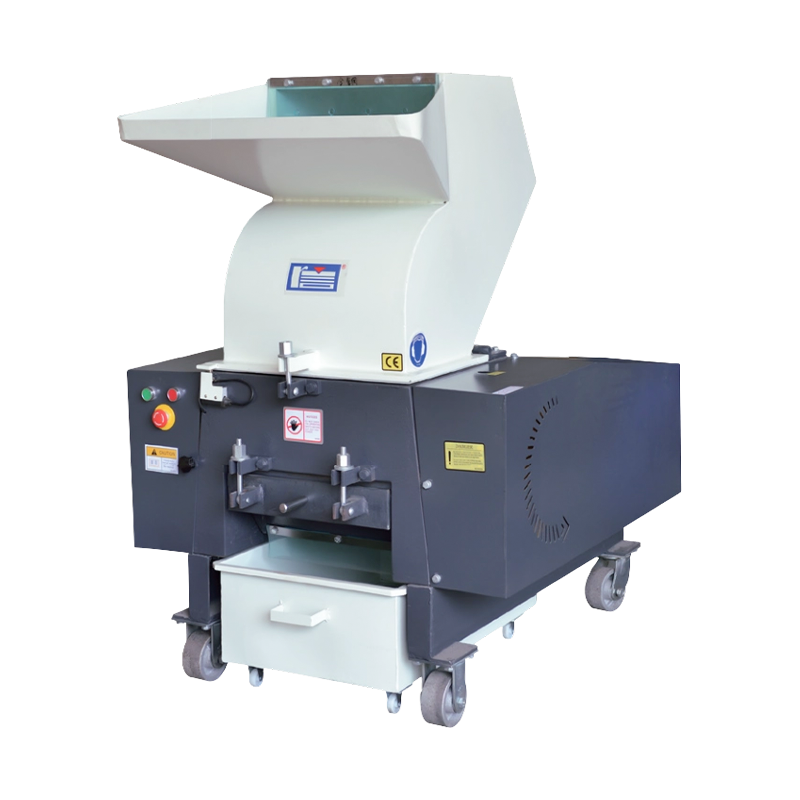

(Large-Sized)Plastics Crusher

Step-type motion knife design with strong breaking capacity.
The knife tool is refined with imported special tool-steel, the clearance between knife tools is adjustable, when it becomes blunt by using, it can be dismounted repeatedly, and it is durable.

Features
·Use high-intensity steel screws to fasten the knife leaf and knife seat, having a strong bearing capacity.
·All walls of the crushing chamber are treated with soundproofing, resulting in extra-low noise.
· A discount-type design, the bunker, main body, and Sieve can be dismounted for cleaning easily, with a heavy bearing with a dust protection device.
·The electric motor has overload protection with a power source interlock protection device. Double-safety protection for operators and the electric motor.
· Equipped vibration feet on XFS-500, reduce noise of vibration.

Request a Quote Download

PREV：No previous product NEXT：Sound Proof Crusher

Standard blade bed

Standard blade bed is suitable to crush normal board material, tube material, foam material and plastic material, such as packaging boxes and wrapping.

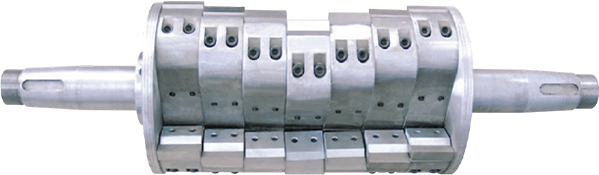

Claw-shape blade bed system

Claw-shape blade bed system can disperse the pressure and therefore it is good to be used for crushing hard and raw materials.

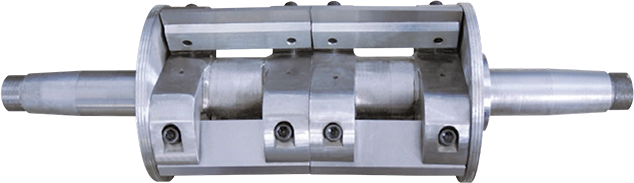

Patch-shaped blade bed system

Patch-shaped blade bed system is suitable for the recovery of crushing film and sheet materials, such as PE, PP crushing film, weaving bags and fibre material.

Product Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Model	XFS-180	XFS-230	XFS-300	XFS-400	XFS-500	XFS-600	XFS-800	XFS-1000	XFS-1200
Power(kw)	2.2	4	5.5	7.5	11	15	22	30	45
Rotating blades	9	6	9	12	15	18	24	30	36
Fixed blades	2	2	2	2	2	4	4	4	4
Rotate speed(r/min)	520	720	800	720	720	620	576	576	576
Sieve size(mm)	Ø7	Ø8	Ø10	Ø10	Ø10	Ø12	Ø12	Ø14	Ø14
Weight(kg)	144	290	360	520	740	980	1880	2220	3000
Max.breaking capacity(kg/hr)	100-150	150-200	200-300	400-600	500-700	600-800	700-900	800-1000	1500-2500
Size of feeding inlet(mm)	180x136	230x170	300x210	400x240	500x300	600x310	800x400	1000x400	1200x560
External size(mm)	730x440x900	1000x700x1050	1100x800x1200	1300x900x1400	1450x1050x1500	1500x1250x1720	2000x1400x2100	2000x1600x2100	2340x1950x2100

Model	XFS-2230	XFS-2840	XFS-3050	XFS-3460	XFS-4680	XFS-46100	XFS-5680	XFS-56100	XFS-56120
Power(kw)	5.5	7.5	11	15	22	37	37	45	55
Rotating blades	15	21	21	24	30	39	30	39	45
Fixed blades	2	2	2	4	4	4	4	4	4
Rotate speed(r/min)	800	720	720	620	576	576	480	480	480
Sieve size(mm)	Ø10	Ø10	Ø10	Ø12	Ø12	Ø12	Ø12	Ø14	Ø14
Weight(kg)	410	580	740	980	1880	2200	3300	3600	3900
Max. breaking capacity(kg/hr)	200-300	400-600	500-700	600-800	700-900	800-1000	1000-1600	1200-2000	1500-2500
Size of feeding inlet(mm)	300x210	400x240	500x300	600x310	800x400	1000x400	800x560	1000x560	1200x560
External size(mm)	1100x800x1200	1300x900x1400	1450x1050x1500	1500x1250x1720	2000x1400x2100	2000x1600x2100	2340x1820x2810	2340x2020x2810	2340x1950x2810

Model	XFS-300P	XFS-400P	XFS-500P	XFS-600P	XFS-800P	XFS-1000P	XFS-56100P	XFS-56120P
Power(kw)	5.5	7.5	11	15	22	30	45	55
Rotating blades	3	6	6	6	6	6	6	6
Fixed blades	2	2	2	4	4	4	4	4
Rotate speed(r/min)	800	720	720	620	576	576	480	480
Sieve size(mm)	Ø10	Ø10	Ø10	Ø12	Ø12	Ø14	Ø14	Ø14
Weight(kg)	410	520	740	980	1950	2220	3600	3900
Max. breaking capacity(kg/hr)	200-300	400-600	500-700	600-800	700-900	800-1000	1200-2000	1500-2500
Size of feeding inlet(mm)	300x210	400x240	500x300	600x310	800x400	1000x400	1000x560	1200x560
External size(mm)	1100x800x1200	1300x900x1400	1450x1050x1500	1500x1250x1720	2000x1400x2100	2000x1600x2100	2340x2020x2810	2340x1950x2810
