XNS

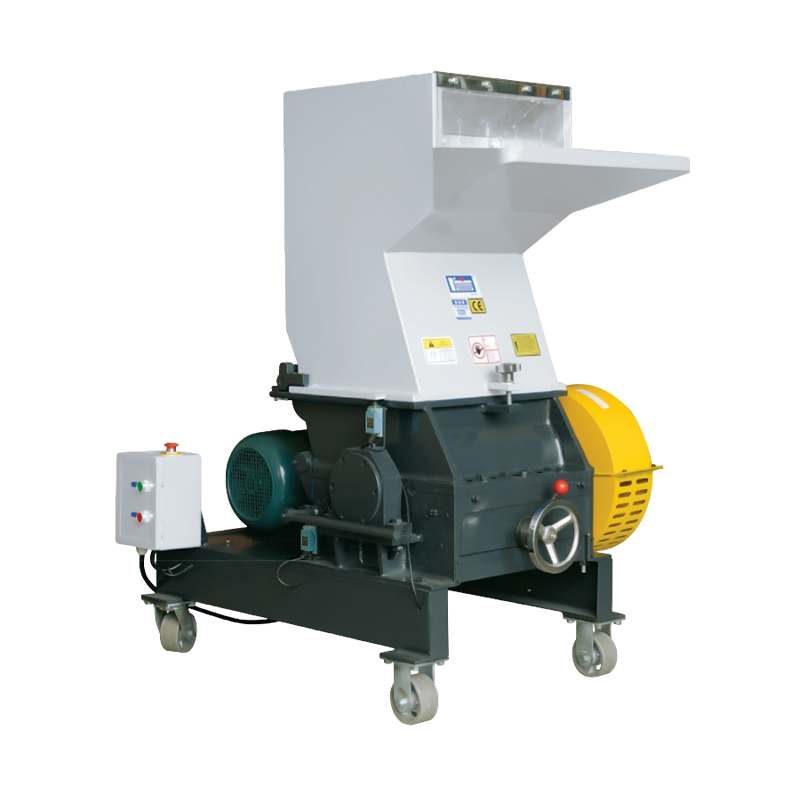

Crusher

Use"V-type" cutting technology, decrease abrasion between blades and the crushing chamber, and improve the service life of blades. Outside structure of bearing. Suitable for waste all kinds of plastics, including massive, round, and strip. lt will operate importantly in the plastic industry.

Features
·Use a self-aligning roller bearing.
· The crushing chamber uses a half-open structure.
·Shim is designed with four edges, reducing sharpening times, as well as durable.
·The bottom of the screen opens and the rocker opens the structure.
·Use all closed safety covers with wheels.
·Raise hopper feeding inlet size and height.

Product Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Model XNS200-230 XNS200-300 XNS260-400 XNS260-500 XNS260-600 XNS400-600 XNS400-700 XNS400-800 XNS400-1000
Rotation diameter(mm) 200  200  260  260  260  400  400  400  400
Rotor width(mm) 230  300  400  500  600  600  700  800  1000
Feeding inlet size(mm) 200x230 200x300 260x500 260x500 260x600 450x600 450x700 450x800 500x1000
Motor power(kw) 5.5  11  11  11  15  18.5  22  30
Optional power(kw) 5.5  7.5  15  15  15  18.5  22  30  37
Sieve size(mm) Ø8 Ø10 Ø10 Ø10 Ø10 Ø12 Ø12 Ø12 Ø12
Fixed blades
Rotating blades 1x3 1x3 2x3 2x3 2x3 2x3 2x3 2x3 2x3
Drive device / / / / / Handle Handle Handle Handle
External size(mm) 1015x660x1245 1100x800x1200 1215x860x1415 1315x940x1455 1315x1040x1455 1700x1190x2100 1700x1290x2100 1710x1430x2160 1710x1630x2160
