XTL

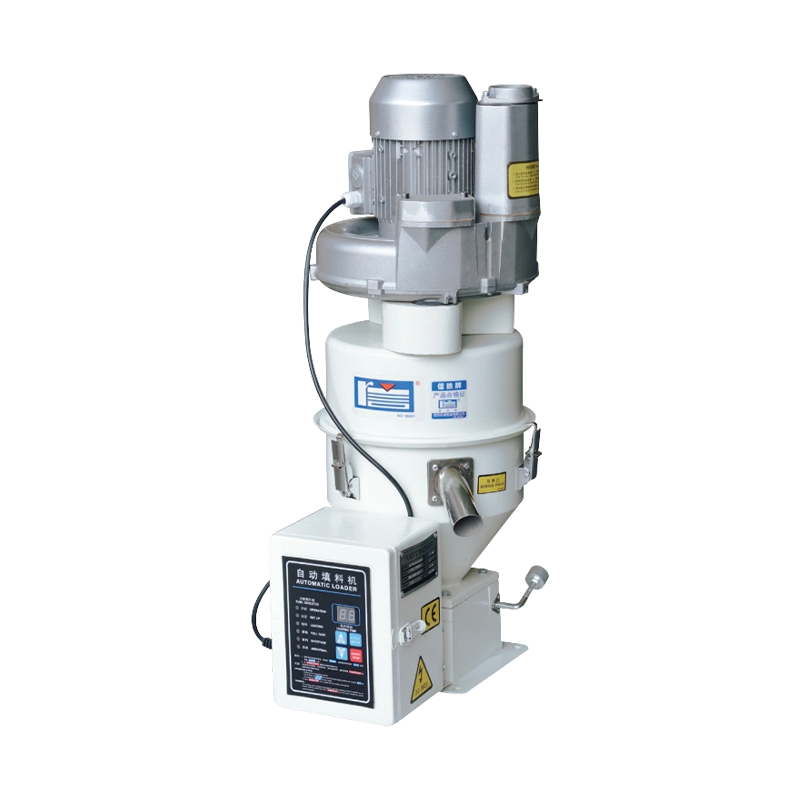

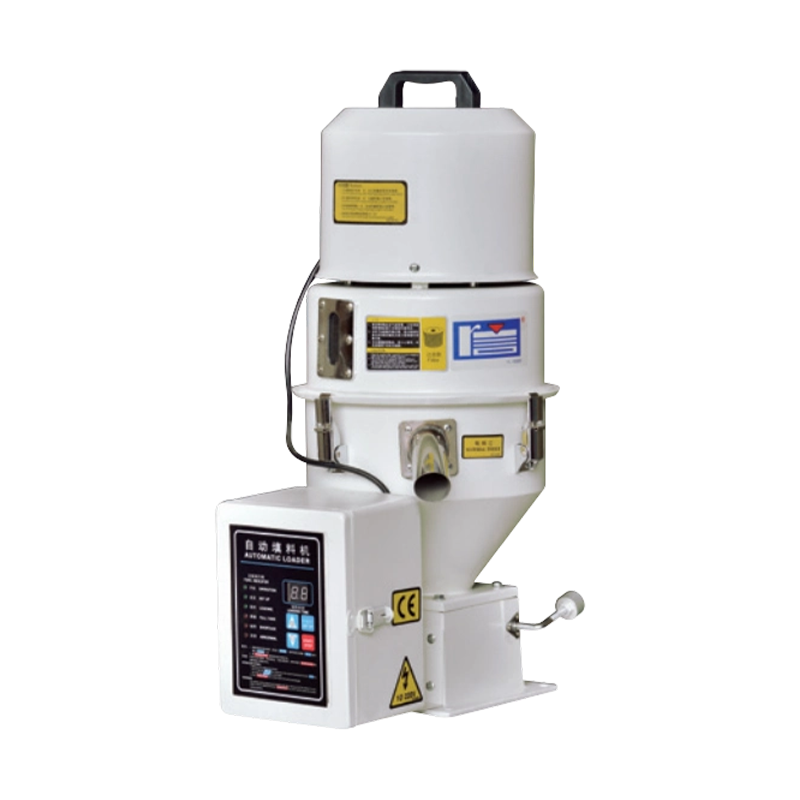

Vacuum Autoloader

Request a Quote Download
PREV：Vacuum AutoloaderNEXT：Type Up-Style Conveyor Belt

Product Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Model XTL-600GN XTL-800GN XTL-3.5HP XTL-5HP XTL-7.5HP XTL-10HP XTL-900GN-2 XTL-800GN2-P
Motor Type Induction
Specification 1500w3Ø 2200w3Ø 3000w3Ø 4000w3Ø 5500w3Ø 7500w3Ø 2200w3Ø 1100w3Ø
Conveying capacity(kg/hr) 450  550  600  700  1100  1500  450+450 650
Static wind pressure(Max) 1450mmAq 2000mmAq 2200mmAq 2200mmAq 2500mmAq 2800mmAq 2000mmAq 1450mmAq
Filter Ø185x110H Ø185x110H Ø185x260H Ø185x260H Ø185x260H Ø185x260H Ø185x110H Ø185x110H
Volume of material hopper(L) 6.5  6.5  18  18  18  18  6.5   12 18
Inside diameter of conveying pipe(mm) Ø38 Ø38 Ø51 Ø51 Ø51 Ø63.5 Ø38 Ø38
Extemal Size Main body LxWxH(mm) 680x370x500 700x370x500 700x500x950 700x500x950 700x600x950 750x650x950 850x480x740 680x370x500
Material hopper LxWxH(mm) 430x440x295 430x440x295 430x440x750 430x440x750 430x440x750 430x440x750 430x440x500 430x440x700
Weight Main body(kg) 55  65  72  82  120  130  70  60
Material hopper(kg) 6  6  7  8  8  8  6+6 12

Model XTL-300GN XTL-300GE XTL-450GE
Motor Type Carbon brush Carbon brush Induction
Specification 1100w1Ø 1100w1Ø 750w3ø
Conveying capacity(kg/hr) 400  350  400
Static wind pressure(Max) 1500mmAq 1500mmAq 1500mmAq
Filter Ø185x110H Ø185x90H Ø185x90H
Volume of material hopper(L) 6  6  6
Inside diameter of conveying pipe(mm) Ø38 Ø38 Q38
External Size Main body LxWxH(mm) 480x310x430 500x400x600 500x400x800
Material hopperLxWxH(mm) 430x440x295 500x400x600 500x400x800
Weight Main body(kg) 20  17  31
Material hopper(kg) 6  17  31
