XFS

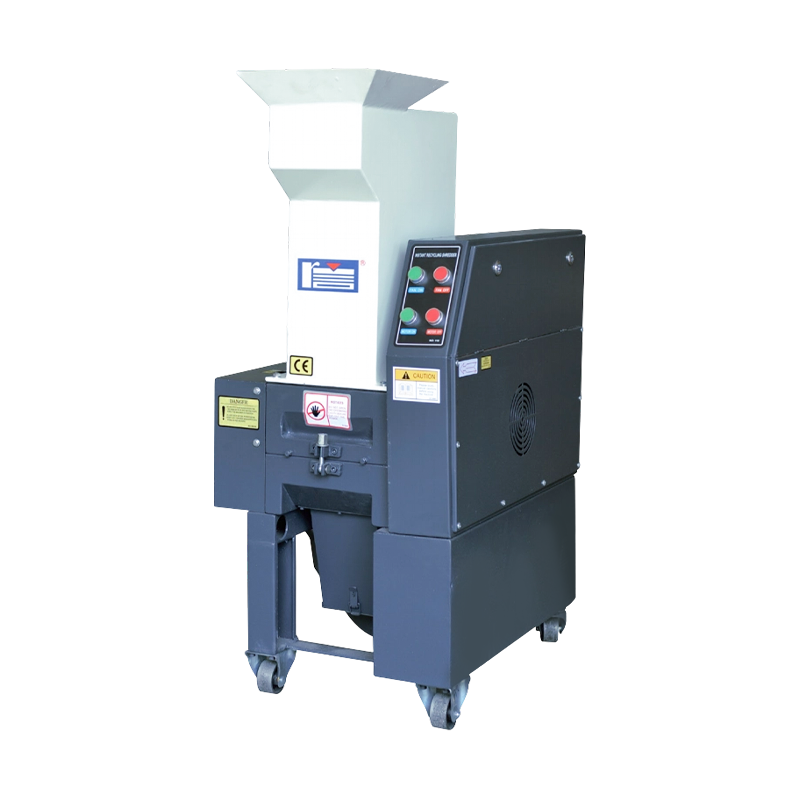

Side Crusher

Highly finished cutting tools made of imported special tool steel, the clearance of which is adjustable, the cutting tools are durable and can be ground repeatedly. Recovery can be completed within 30 seconds. There is no need to grind collectively and therefore, the equipment can always be kept clean and dry.

Features
·Low speed and with sound isolation, so the noise is very little.
·Equipped with a double spacing switch and an automatic sudden stop arrangement. It can efficiently guarantee the safety of operators.
· The inlet hopper is designed specially with an anti-rust device that can efficiently prevent leaks and pollution in the grinding process.
· The outlet hopper is perfectly designed, making it quite convenient for operators to clean the machine.

Product Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Model XFS-180G XFS-230G
Power(kw) 2.2
Quantity of rotating blades
Fixed blades
Rotate speed(r/min) 520  620
Sieve size(mm) ø7 ø7
Weight(kg) 200  280
Max.Breaking capacity(kg/hr) 120  200
Size of feeding inlet(mm) 180x160 230x160
External Size(mm) 750x550x1180 920x620x1330
