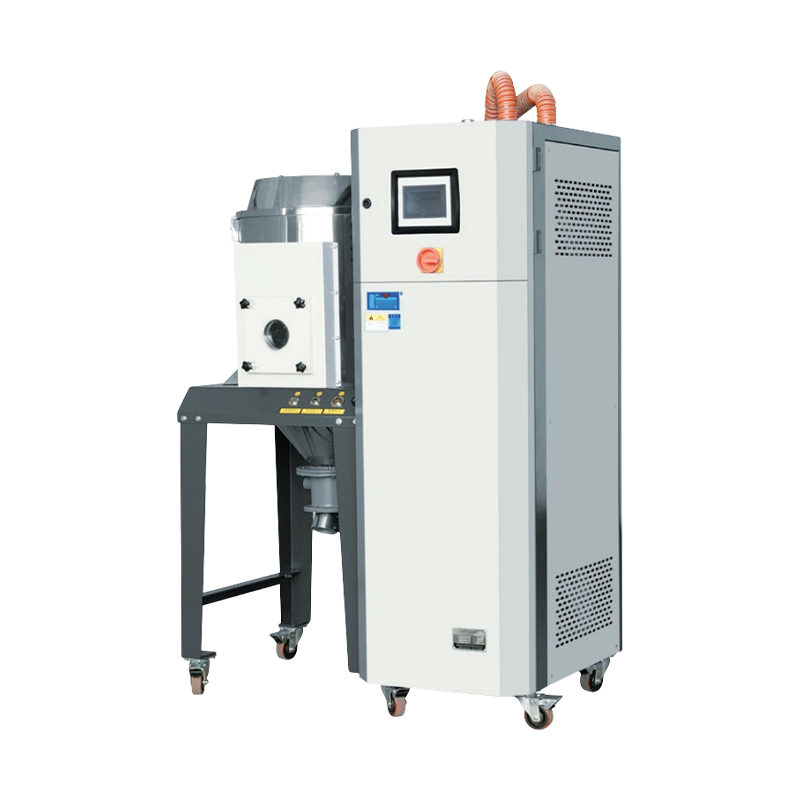

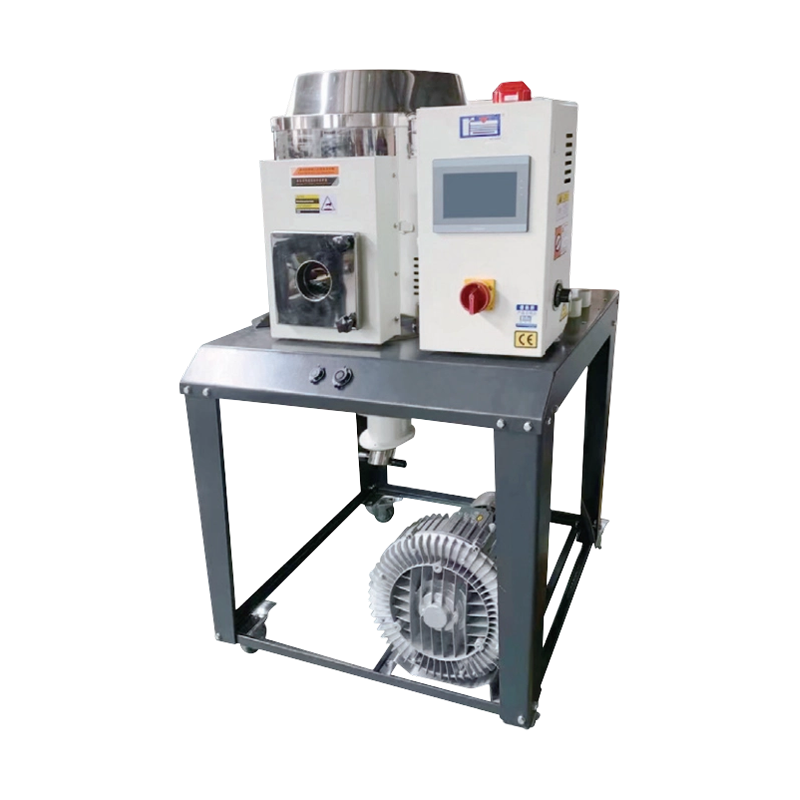

Microcomputer control system, control machine running automatically(with timing switch and full-functional alarming system). Used for high hygroscopic engineering plastic and rubber, such as PA, PC, PBT, PET, etc., H4 and H5 types can be selected according to customers' demand.
Features
·Hot-air recycling system, saves power consumption up to 4o% and is environment-friendly without hot-air and dust exhausting.
·Compact in size for easy moving and the machine can be replaced easily.
·The sealed piping sends material to the target machine. To avoid secondary pollution, the built-in shut-off valve guarantees that no material is in the piping.
We can design and develop according to the needs of our customers to meet the requirements of different clients.
| Model | XDL-50 | XDL-100 | XDL-200 | XDL-400 |
| Provide with | ||||
| Heater power of dryer(kw) | 3.9 | 6.0 | 12 | 18 |
| Feeding blower power(kw) | 1.5 | 2.2 | 2.2 | 2.2 |
| Drying blower power(kw) | 0.2 | 0.25 | 0.4 | 0.4 |
| External size(mm) | 1100×750×1500 | 1200×900×1700 | 1580×930×2000 | 1700×1100×2100 |
| Weight(kg) | 110 | 210 | 300 | 400 |
