Save Time and Manpower: As the hopper body and bottom are designed separately, and therefore it is very convenient to clean materials and quite simple and quick to renew materials as well. A, L feet frames, receiver of hot air, the filter of inlet of fan, the filter of air exhauster, magnetic base, magnetic iron of bunker, and European material box are available for selection. Well-distributed Heated Wind: The heat efficiency is high enough to shorten great amount of drying time.
Features

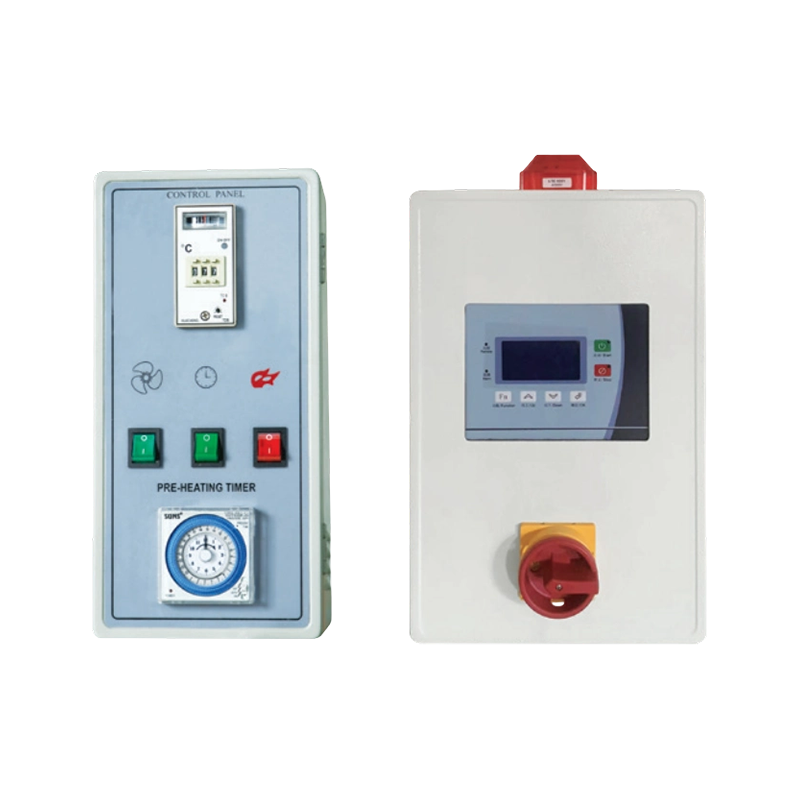

·Precise Temperature Controls: The precise temperature controls ensure and keep a high accuracy of temperature.
·The Trustworthy Design: Fine exterior, solid construction. Short material-melting time greatly helps to promote the spouting speed.
·Increase injection ratio: direct heating blanking, shorten material melt time, and promote the injection ratio.
·Automatic control time: setting on/off freely 24 hours around, automatic working.
We can design and develop according to the needs of our customers to meet the requirements of different clients.
| Model | Diameter (mm) |
External size (mm) |
Capacity (kg) |
Heater power (kw) |
Applicable injectioner (0Z.) |
| XHD-12KG | Ø280 | 640x430x780 | 15 | 2.1 | 1 |
| XHD-25KG | Ø350 | 760x500x900 | 25 | 3.5 | 3 |
| XHD-50KG | Ø430 | 840x540x1030 | 50 | 4.8 | 5-8 |
| XHD-75KG | Ø468 | 950x600x1140 | 75 | 5.1 | 6-9 |
| XHD-100KG | Ø550 | 1080x700x1250 | 100 | 7.8 | 10-30 |
| XHD-150KG | Ø630 | 1120x760x1300 | 150 | 8.88 | 15-30 |
| XHD-200KG | ø700 | 1250x850x1480 | 200 | 10 | 30-60 |
| XHD-300KG | Ø750 | 1300x920x1740 | 300 | 15 | >60 |
| XHD-400KG | Ø800 | 1400x1040x1760 | 400 | 20 | >60 |
| XHD-600KG | Ø990 | 1600x1150x2150 | 600 | 27 | >60 |
| XHD-800KG | Ø1090 | 1700x1330x2660 | 800 | 30 | >60 |
| XHD-1000KG | Ø1090 | 1700x1330x2860 | 1000 | 32 | >60 |
| XHD-1500KG | Ø1300 | 2100x1400x3000 | 1500 | 48 | >60 |
