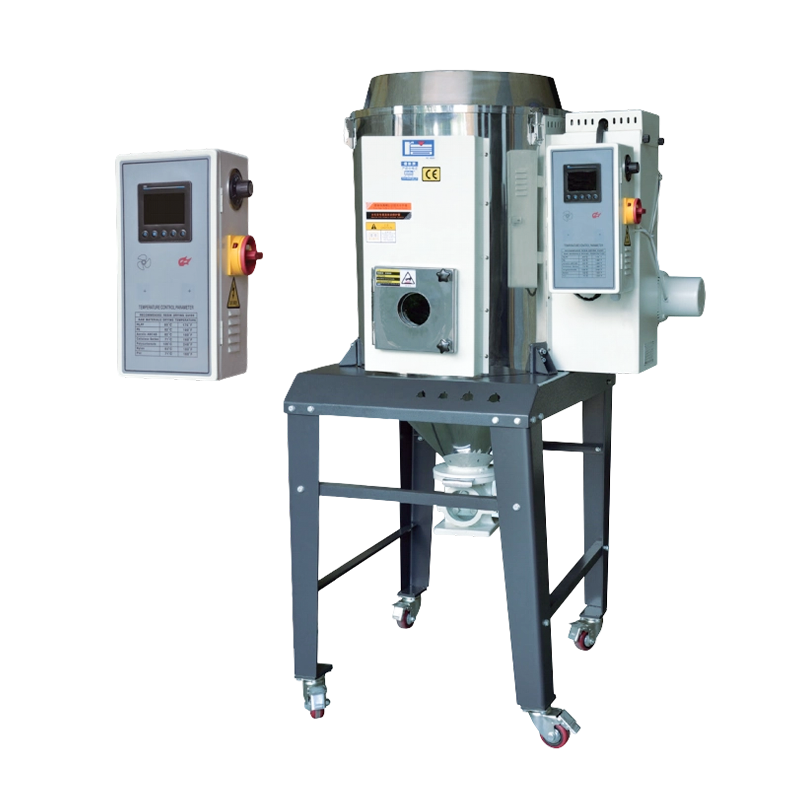

XHD-U series of insulated hopper dryers works under the"down-blowing" and"cyclonic exhausting" principle and double-layer construction for heat preservation. This series offers 13 models providing hopper capacities from 40 to 2ooo liters. Contact parts are made of stainless steel. Models with capacities above 80 liters adopt temperature-maintaining door that clear up dust and 1-week auto start-stop timer function. Special "down-blowing" designed to distribute heat evenly, avoiding drying plastic granules' two times moisture absorption, creating drying ability.
Features
·Openable window for view and inspection, excellent airtight and it is easy to clean materials
·Equipment with a microcomputer controller that can reduce accidents caused by men's wrong operation or mechanical error.
·1-week auto start-stop timer function for saving energy.
·All models offer an aluminium bottom, feet suction box, hot-air recycling system, and air filter for options
·The whole machine is insulated when the high temperature resistance is selected
We can design and develop according to the needs of our customers to meet the requirements of different clients.
| Model | Hopper capacity(L) | Heater power(kw) | Blower power(W) | External size HxWxL(mm) | Specifceation(mm) | Height(external size)(mm) | Weight(kg) |
| XHD-40U | 40 | 3 | 120 | 760x640x390 | 790x450x660 | 1295 | 40 |
| XHD-80U | 80 | 3.9 | 120 | 940x722x475 | 840x552x722 | 1465 | 50 |
| XHD-120U | 120 | 3.9 | 120 | 1210x722x475 | 840x552x722 | 1735 | 60 |
| XHD-160U | 160 | 6 | 180 | 1225x822x575 | 920x652x795 | 1825 | 90 |
| XHD-230U | 230 | 6 | 180 | 1505x822x575 | 920x652x795 | 2105 | 100 |
| XHD-300U | 300 | 12 | 250 | 1450x945x695 | 970x790x930 | 2085 | 130 |
| XHD-450U | 450 | 12 | 250 | 1850x945x695 | 970x790x930 | 2435 | 160 |
| XHD-600U | 600 | 18 | 550 | 1820x1170x915 | 1130x1000x1200 | 2470 | 200 |
| XHD-750U | 750 | 18 | 550 | 2100x1170x915 | 1320x1000x1200 | 2780 | 220 |
| XHD-900U | 900 | 18 | 550 | 2070x1340x1050 | 1320x1200x1200 | 2730 | 250 |
| XHD-1200U | 1200 | 18 | 2200 | 2500x1340x1050 | 1320x1200x1200 | 3160 | 376 |
| XHD-1500U | 1500 | 32 | 3000 | 2950x1540x1250 | 1400x1500x1500 | 3470 | 495 |
| XHD-2000U | 2000 | 32 | 3000 | 3350x1540x1250 | 1400x1500x1500 | 3870 | 568 |
